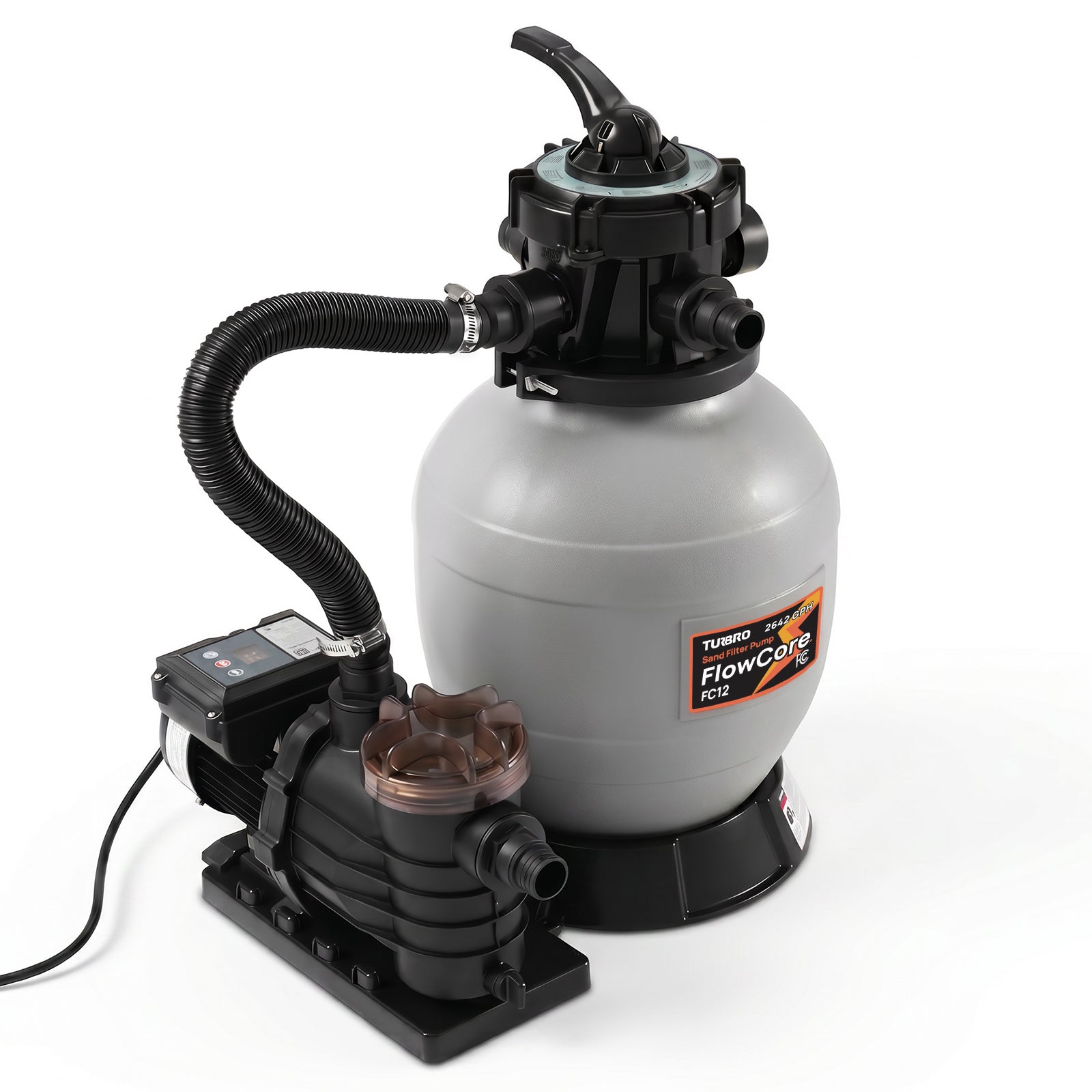

FlowCore FC12 Sand Filter Pump
FlowCore FC12 Sand Filter Pump
SKU: | SKU: 707-PDC-FC12-A
In stock
Couldn't load pickup availability
Description
Description

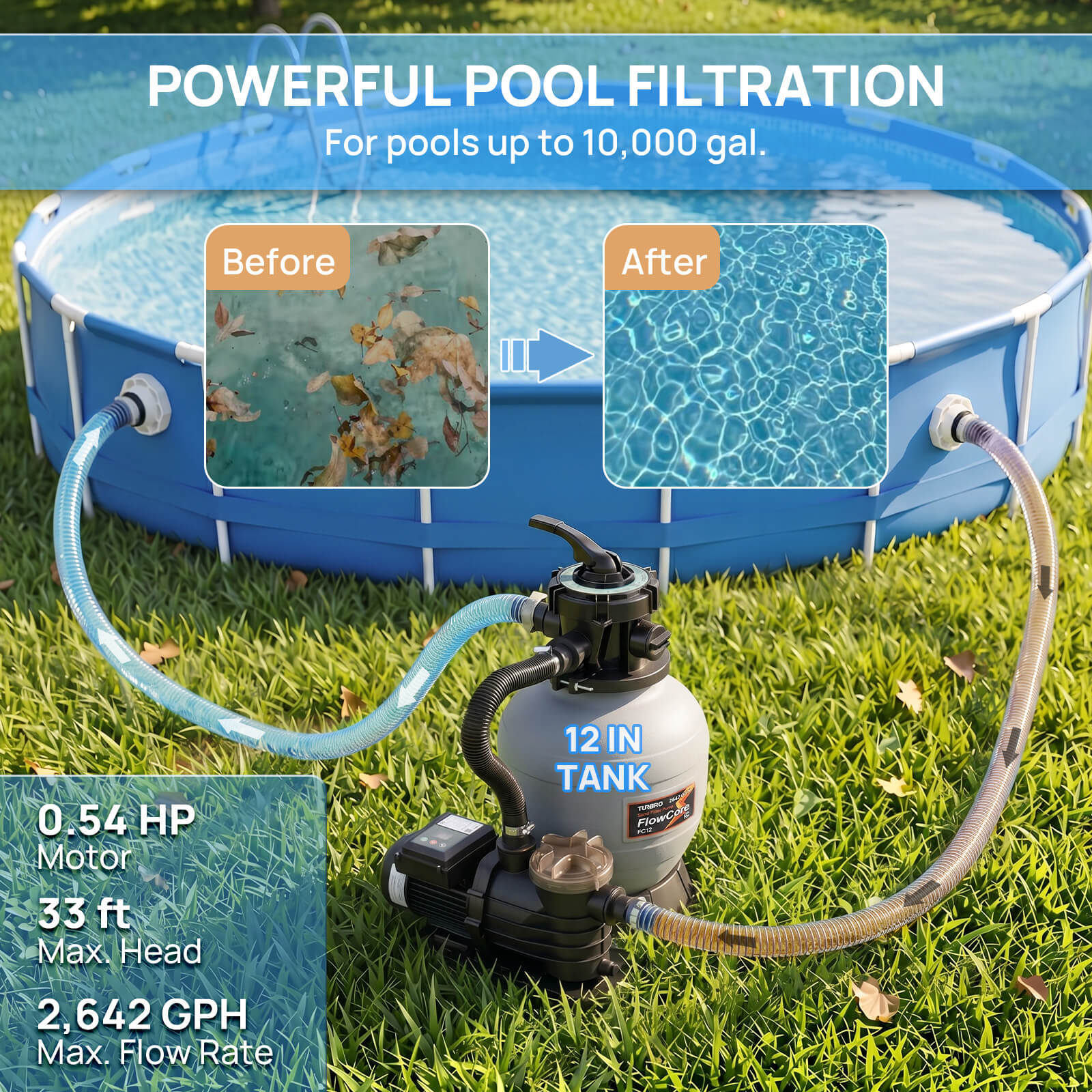

- Powerful Dual Filtration: FlowCore FC12 features a pump strainer basket to capture large debris before water enters the 12 in tank; deep filtration with sand or filter balls (not included); 0.54 HP motor with up to 2,642 GPH max open flow and 33 ft max head for strong water circulation

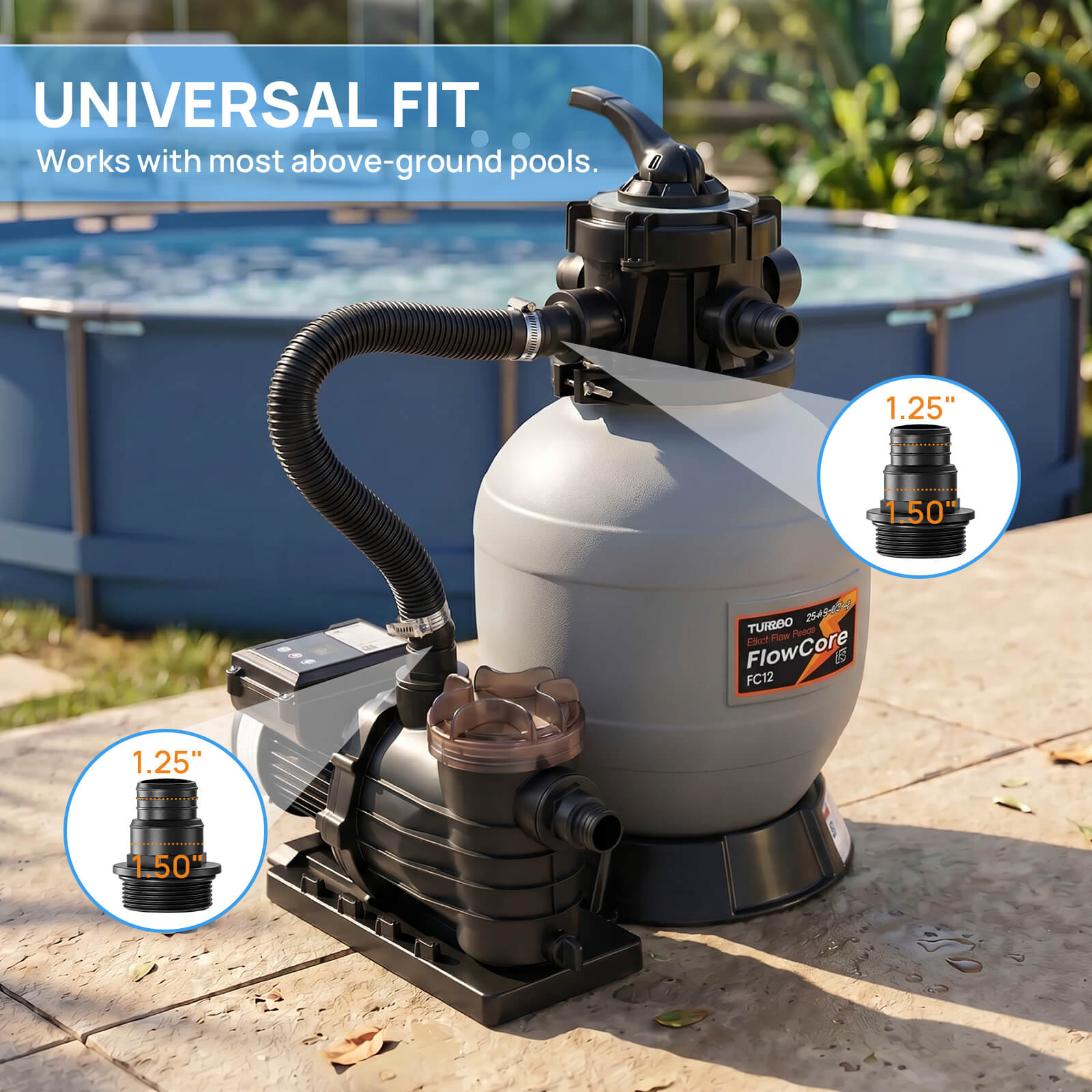

- Wide Pool Compatibility: Designed for above-ground pools up to 10,000 gallons; fits inflatable and frame pools in round or rectangular shapes; includes 1.25 in and 1.5 in adapters for most standard above-ground pool connections

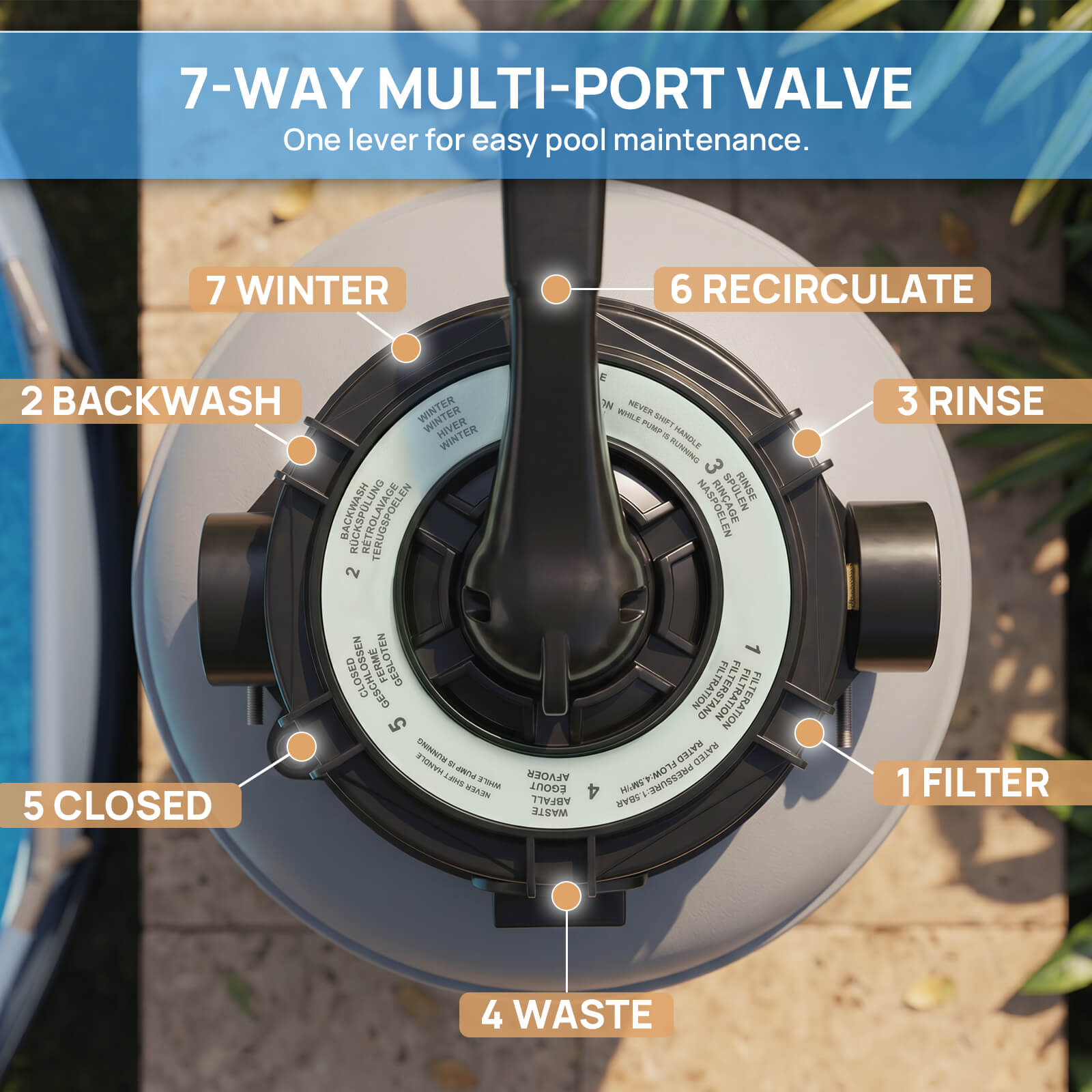

- 7-Way Multi-Port Valve: One-lever control for filter, backwash, rinse, recirculate, waste, closed, and winter settings; easy switching for routine pool cleaning and maintenance; pump must be turned off before changing valve positions

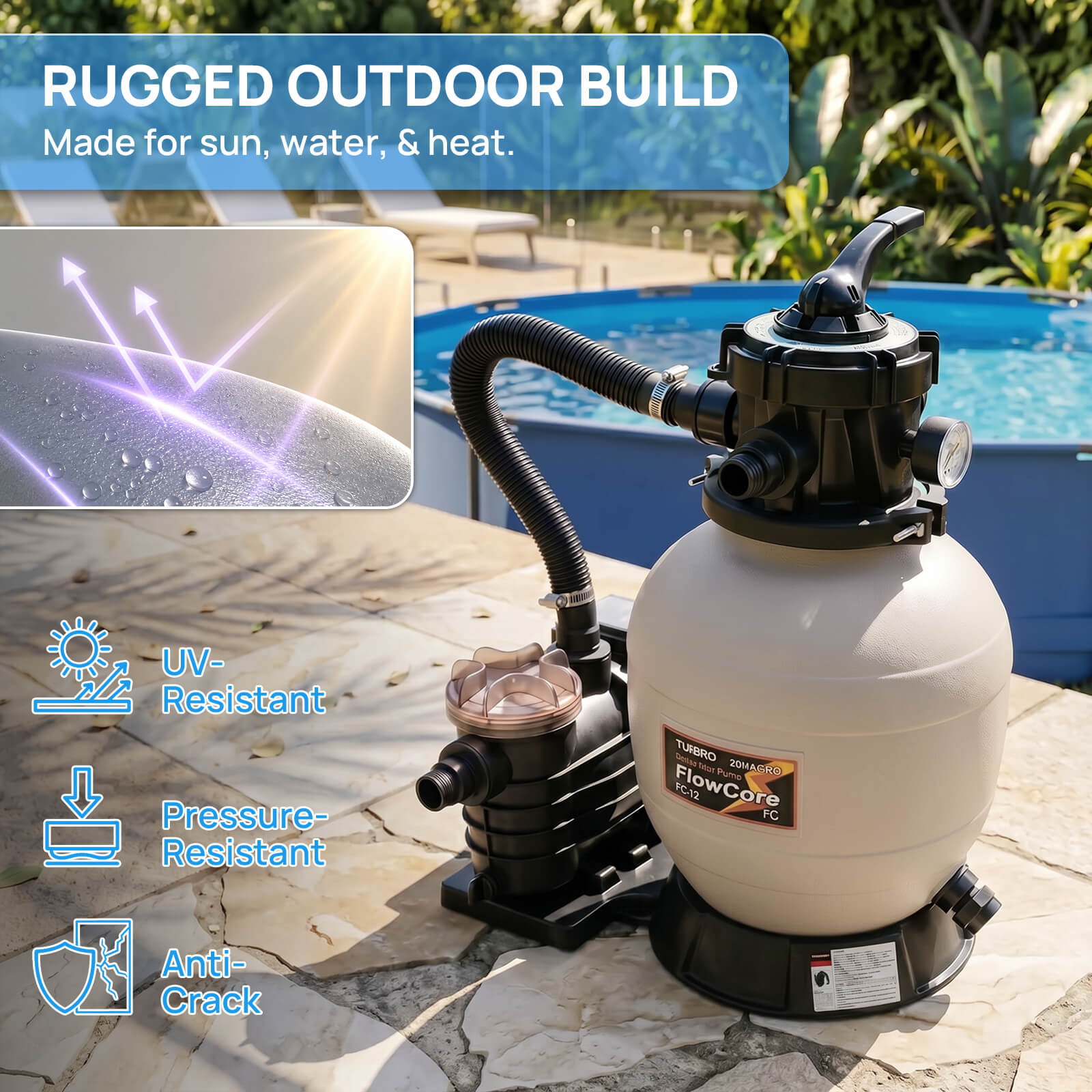

- Outdoor-Ready Construction: TURBRO FlowCore FC12 equips with a high-density UV-resistant tank for long-term outdoor use; corrosion-resistant components for poolside durability; IPX5 waterproof rating for protection against splashes and moisture

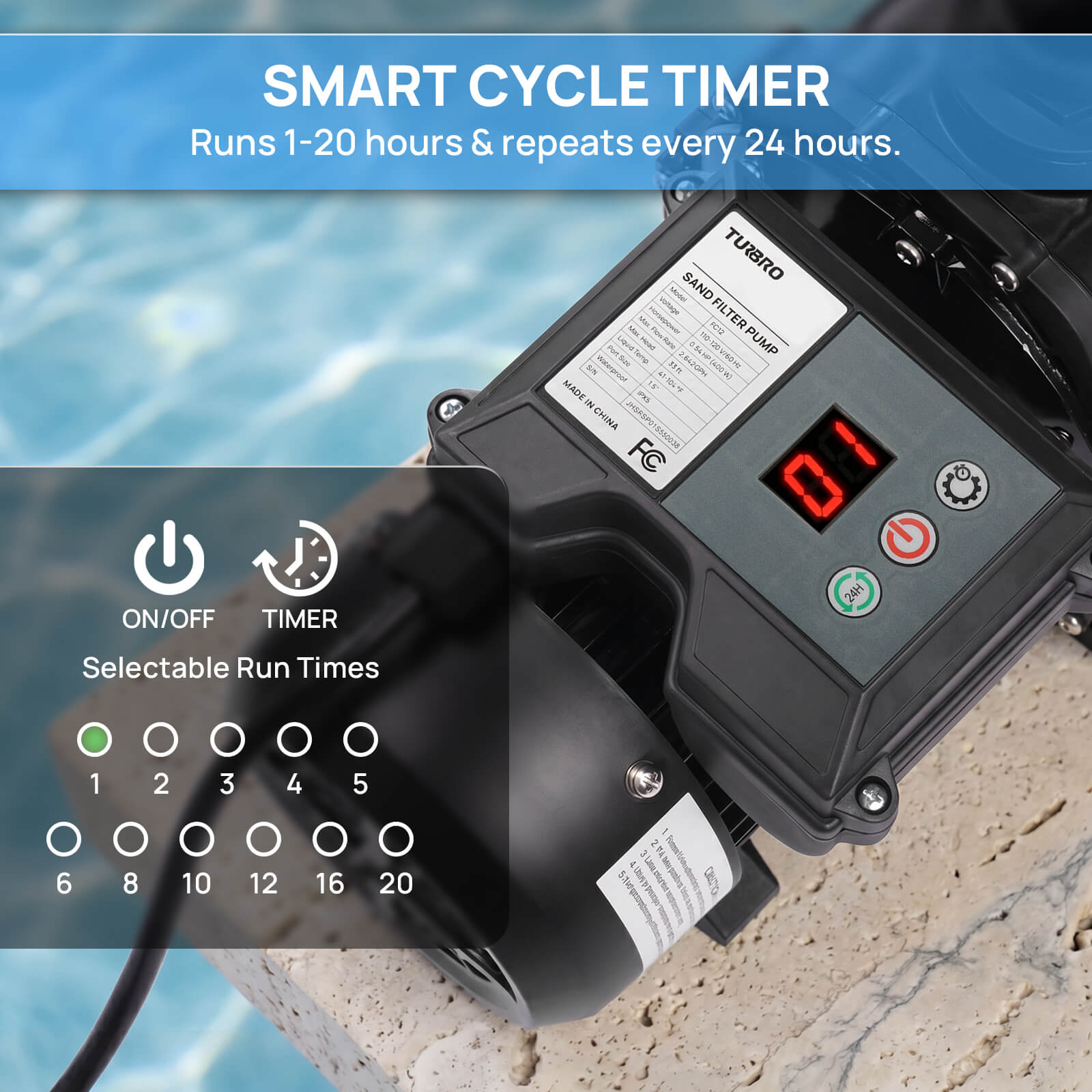

- Easy Monitoring & Maintenance: Built-in pressure gauge for checking filtration condition and backwash timing; cycle timer repeats selected run time every 24 hours for hands-free operation; bottom drain valve for easier water removal, winter storage, and filter media replacement
Manuals
Manuals
Crystal-Clear Water Starts with FlowCore
Powerful filtration and simple maintenance for a cleaner pool season.
Pressure Gauge
The built-in pressure gauge gives real-time feedback on tank pressure, so you can quickly tell when it is time to backwash and keep water flowing smoothly.
Drain Valve
The drain valve at the base of the tank makes it easy to remove water for winter storage, sand replacement, or filter media changes without heavy lifting.

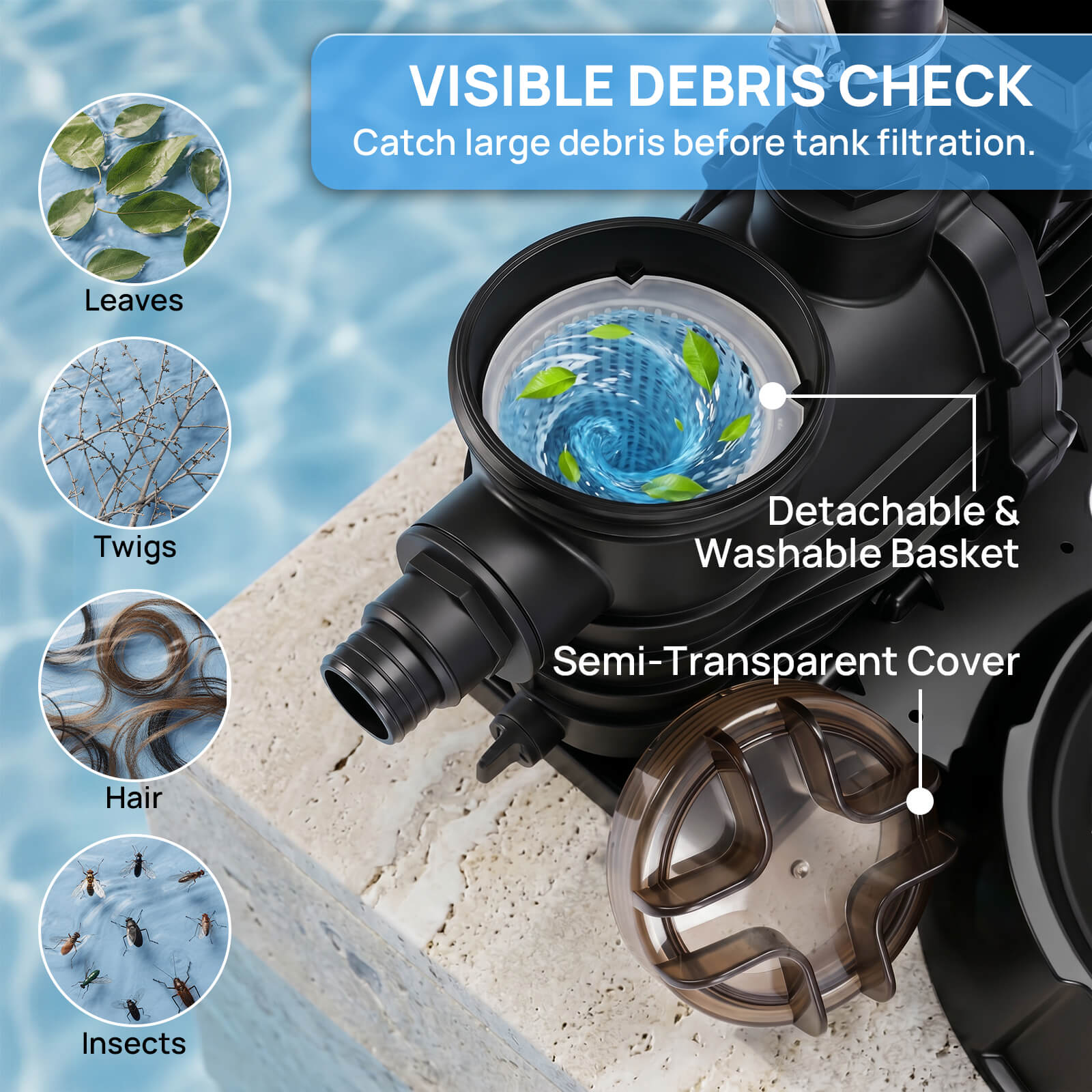

Clear Cover & Strainer
The semi-transparent cover lets you check debris at a glance, while the removable strainer basket captures leaves, hair, and larger particles before they reach the tank.
Sturdy Base Support
The reinforced base helps absorb motor vibration, reduce noise, and keep the filter system steady during operation.
Specification
- Model: FC12
- Power Supply: 110-120 V/60 Hz
- Sand Tank Size: 12 in
- Horsepower: 0.540 HP (400 W)
- Max. Water Pressure: 14.5 psi
- Max. Pump Flow Rate: 2,642 GPH
- Max. System Flow Rate: 1,585 GPH
- Max. Head: 33 ft
- Max. Filter Sand Capacity: 28.7 lb
- Filter Balls Capacity: 12.1 lb
- Effective Filtering Capacity: 7,925 Gal
- Output Port Size: 1.5 in
- Max. Liquid Temperature: 41-104 °F
- Waterproof Class: IPX5
FAQs
Q: Can I install this system myself?
A: Yes. The package includes adapters, hose clamps, and a detailed manual to support setup. Technical support is available if you need additional guidance. Please note that pool-to-pump hoses, pool-to-tank hoses, and hard pipes are not included.
Q: Is this pump compatible with my specific pool type?
A: This system includes adapters for 1.25" and 1.5" hoses, fitting most above-ground pools.
Q: Which filtration media can I use with this system?
A: This system is dual-media compatible. You can use up to 28.7 lb of filter sand or up to 12.1 lb of filter balls. Ensure the media is properly loaded into the 12-inch tank before starting.
Q: How do I know when the sand needs backwashing?
A: Check the pressure gauge during operation. When the reading increases by 8–10 PSI compared with the initial pressure, perform the backwash function. Backwashing usually takes about 2 minutes or less, depending on dirt buildup.
Q: Is this system compatible with saltwater?
A: No. This system is not designed for saltwater pools.
