Indoor Unit Package Included
- Indoor Unit
- Signal Cable
- Remote &AAA Battery
- Drain Joint
- Remote Control Holder
- Screws
- Mounting Plate
- Rubber Feet
- Guide Plate
- Drain Hose
Outdoor Unit Package Included

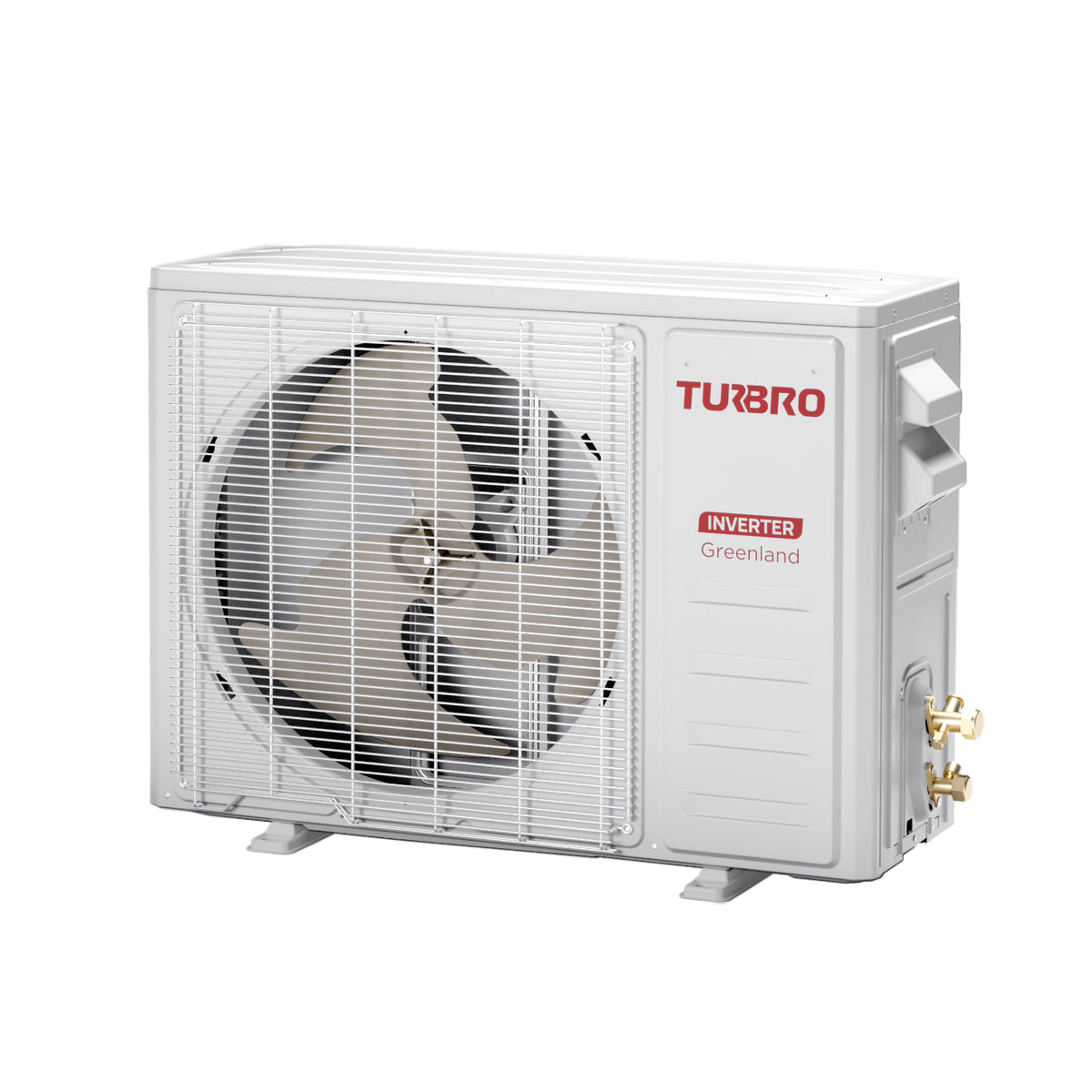

- Outdoor Unit
- Drain Hose
- Refrigerant Pipe (16.4ft)
- Wall Sleeve
- Insulation Tape
- Sealing Gun
Specification
9K115V | 12K115V | 9K230V | 12K230V | 18K230V | 24K230V | |
SEER2 (Bt/W.h) | 23 | 22 | 23.5 | 23 | 22 | 20 |
HSPF2 (Btu/W.h) | 9 | 9 | 9.2 | 9.5 | 8.8 | 8.8 |
Rated Heating Capacity (Btu/h) | 9500 | 12000 | 9500 | 12000 | 18000 | 24000 |
Est. Cooling Area (Sq. Ft.) | Up to 400 | Up to 550 | Up to 400 | Up to 550 | Up to 1000 | Up to 1500 |
Refrigerant | R410A | R410A | R410A | R410A | R410A | R410A |
Indoor Unit Size (inches) | 32x12x8 | 36x12x8 | 32x12x8 | 36x12x8 | 43x13x9 | 43x13x9 |
Outdoor Unit Size (inches) | 29x12x22 | 29x12x22 | 29x12x22 | 29x12x22 | 33x15x28 | 36x17x32 |
Indoor Unit Weight (lbs) | 20.9 | 23.1 | 20.9 | 23.1 | 30.9 | 30.9 |
Outdoor Unit Weight (lbs) | 51.8 | 60.4 | 51.4 | 59.1 | 84.9 | 104.7 |
