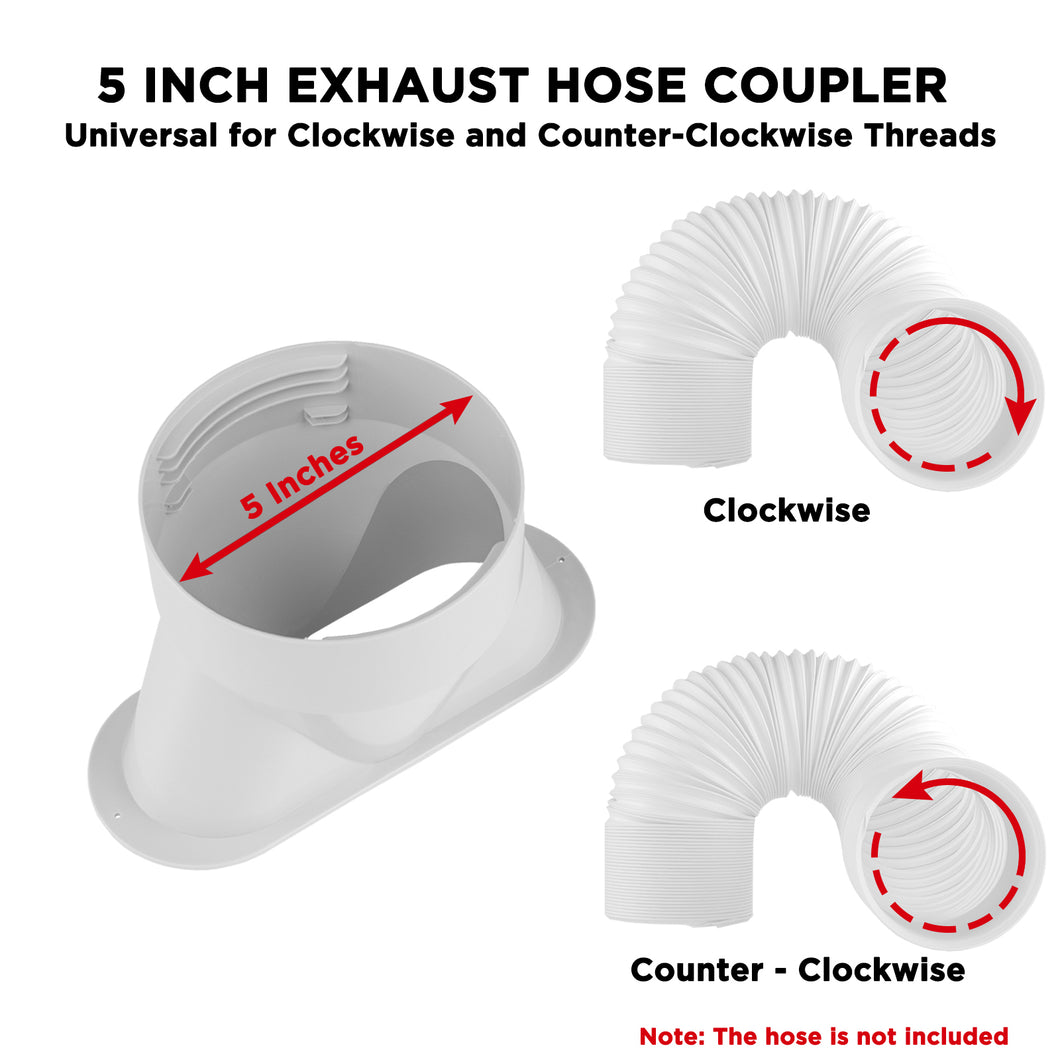

Fits both clockwise and counterclockwise threaded hoses.
Durable PVC Material
Waterproof, UV-resistant material.
Extra-Thick Seal Tape
Prevent outside air from leaking into the room.

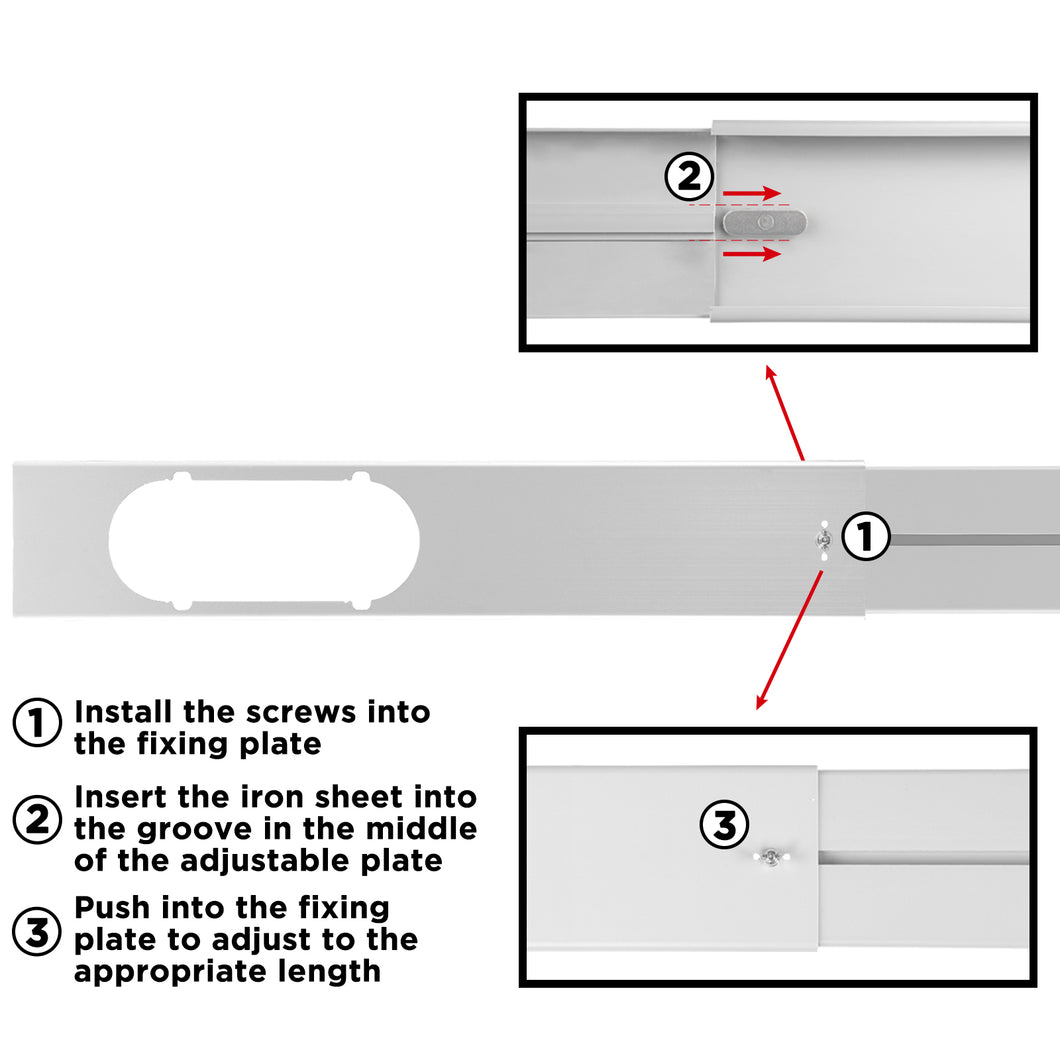

Install the screw and nut on the fixed plate and tighten (do not tight completely.) install the fixed plate to the adjustable plate by sliding the screw kit into the groove of the adjustable plate.
Install the hose on the coupler, then attach the coupler to the plates. Match the coupler with the end of the plate and snap it into place.
Note: The exhaust hose is not included with this item.
Attach the exhaust hose to the coupler on the portable air conditioner.
Adjust the length of the window and insert it into place. After installing the plate kit, use the included tape to seal the gap between the window and the adjustable plate.
Please check your hose's inner diameter and make sure it is 5 inches, not 5.12 inches before you purchase.
- Model: V5513
- Flexible Length:11 - 61 Inches
- Suitable For Exhaust Hose: 5 Inch Clockwise/ Anti-Clockwise Exhaust Hose
- Applicable Models: LG / Shinco / Gree / TOSOT / Aux / Haier / Honeywell / Black Decker / LG, etc.
- Size (L x W x H): 24.41 x 15.75 x 3.94 inches
- Weight: 1.33 lbs.

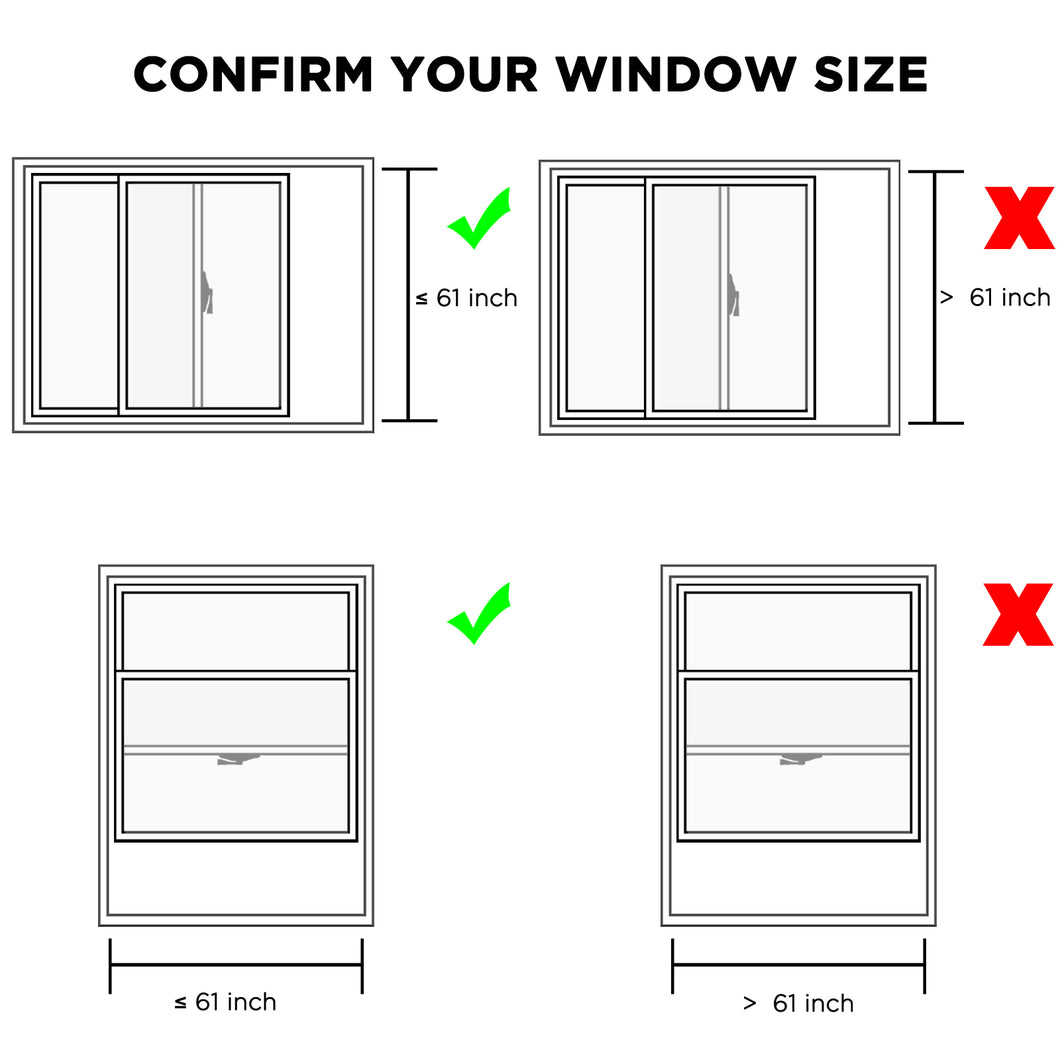

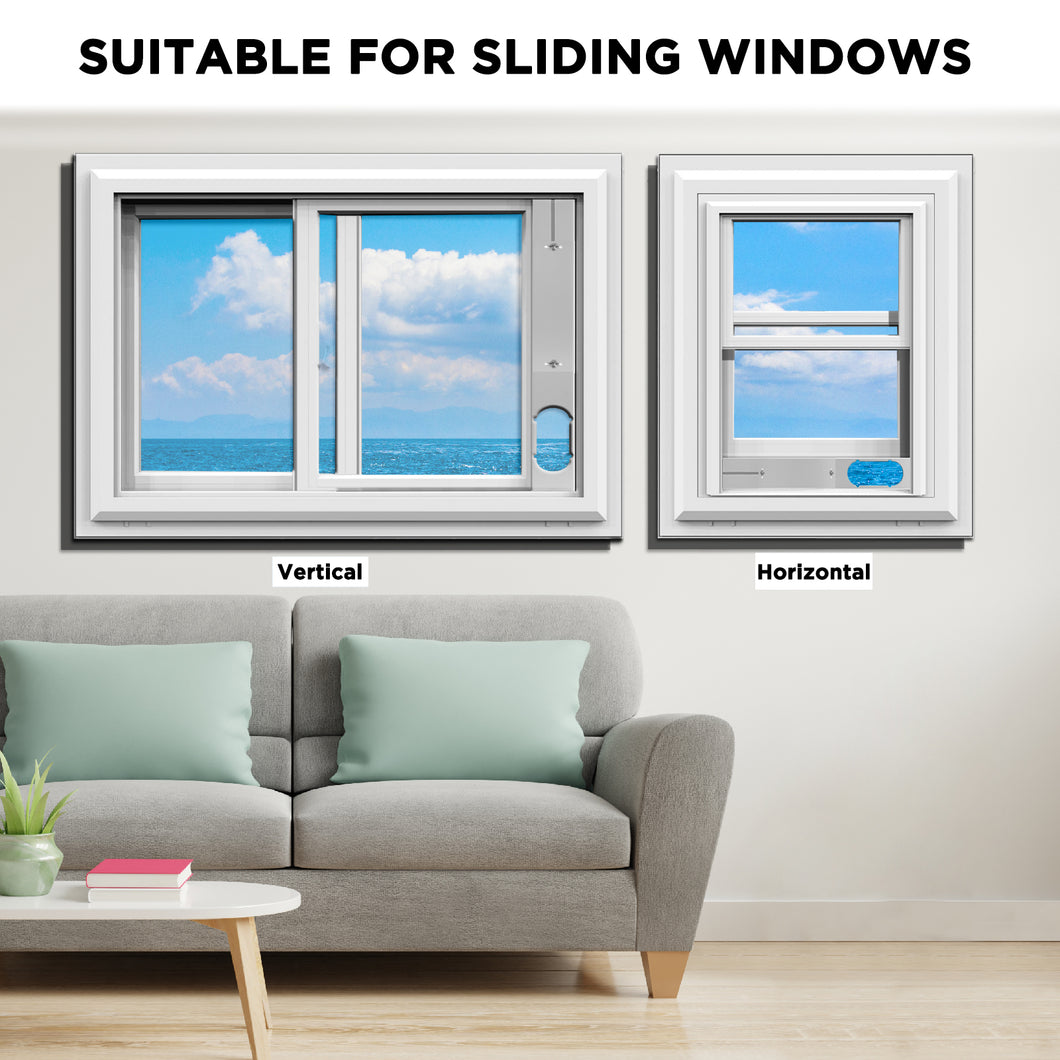

- Horizontal Window (Wide less than 61 Inches)
- Vertical Window (Length less than 61 Inches)
- 2 x 55 cm/21.65 Inch Fixed Plate
- 1 x 55 cm/21.65 Inch Adjustable Plate
- 1 x Exhaust Hose Adaptor
- 1 x 4m Sealing Tape
- 3 x Screw Kit
Let's just start with if you are looking for a vent kit make sure that you do not have a window ledge because it looks in the picture that it is kinda bent so that it would work with a window seal, but it is not bent to a point so it would clear. I bought this for a dryer and with the thick plastic it does not even get hot with a 850 watt dryer. The reasoning for the 3 star is because it does not fit with a window seal and the vent is really loose and when mounting it there was no screws to attach the vent itself.
After speaking with the support with HVAC & Auto Parts/TURBRO. They had sent a new one. they are easy to talk to and was willing to replace the item. I brought it to 5 stars because the support team reached out to me.
It was ok it fit on the window but no screws
As described and fast shipping. Easy to work with seller.
As per instructions you have to cut this hardware to fit. I did and was fine. The attachment is a bit challenging having to twist very hard to fully seat the hose where I was concerned I might break it. Went ok and is holding up after a few install/remove cycles. The tabs that align and seat the window vent are fairly small and narrow so am concerned how robust this is and how long it will last. I’m being careful and for now results are good.
